NEO 3 is a ultra-compact loudspeaker directly inspired by the first models of the NEO series. It features a high performing driver for the reproduction of a wide range of frequencies.It is compatible with 100 V Line and 8 ohm installations. When the loudspeaker is connected to low impedance, audio doesn´t go through the transformer, in order to maintain a high quality level.

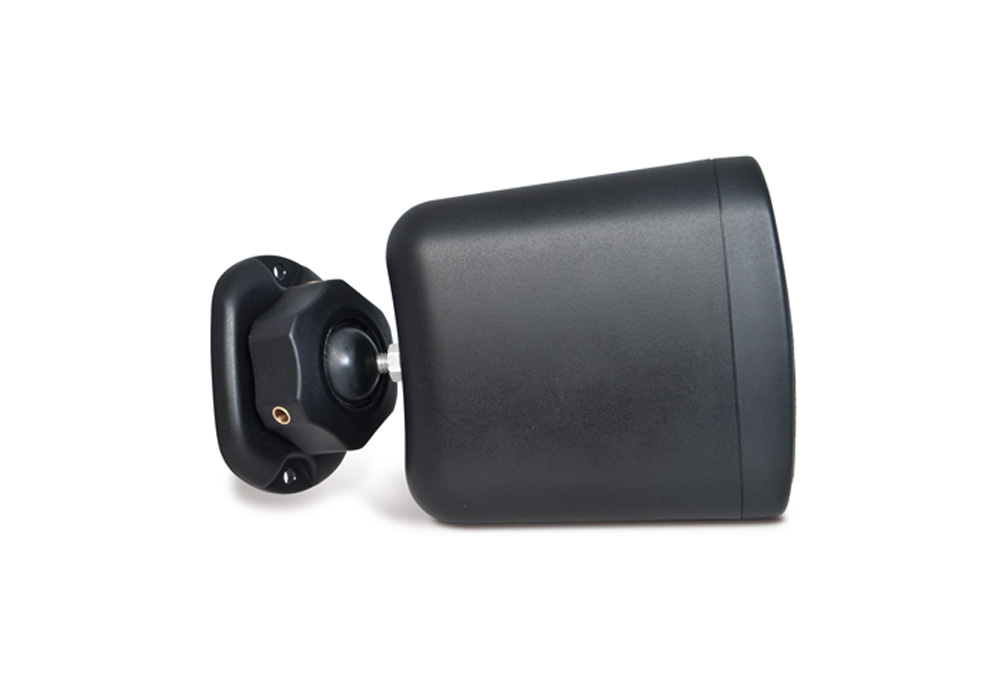

NEO 3 is very quick and simple to install, thanks to its new bracket specifically designed for this model. It is possible to orientate the speaker in both axis very quickly.
Sold in pairs (pasive + pasive).
- Suitable for high and low impedance installations.
- Wall brackets included.
- Price per couple.

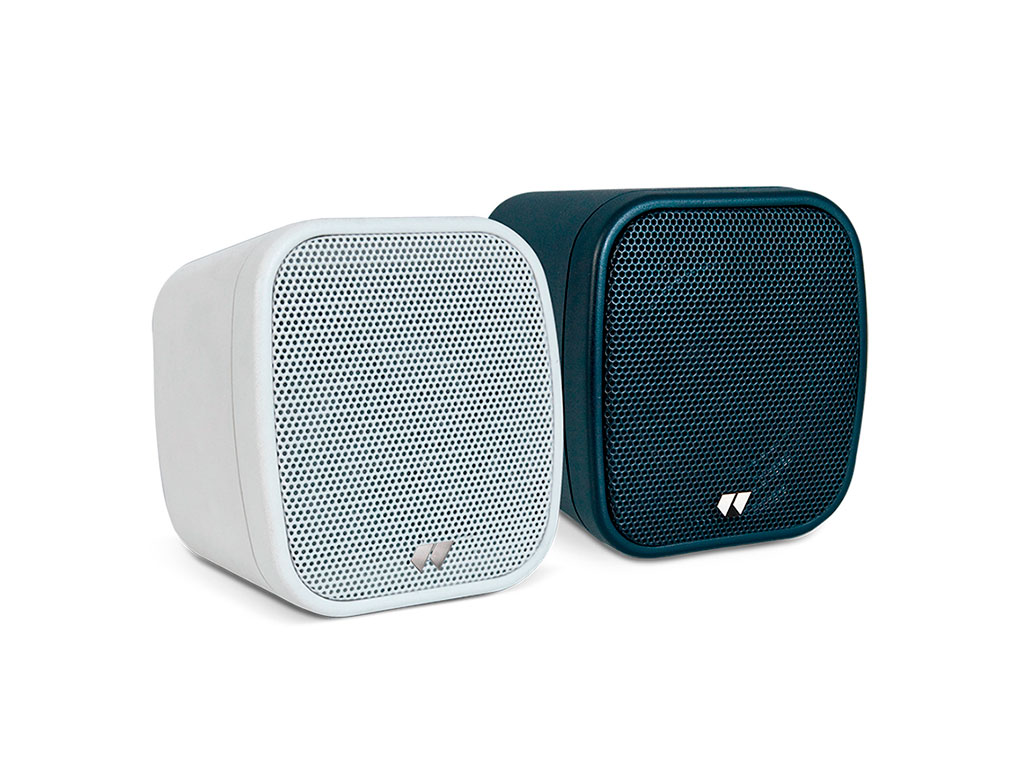

- Black and white colour.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Passive |
| Low Impedance Power | 50 W @ 8 Ohm (HPF @ 120 Hz) |
| L100V Power | 10 W @ 1 KOhm |
| L70V Power | 5 W @ 980 Ohm |
| Nominal Impedance | 8 Ohm |
| Transducer | Woofer 2.5" |
| Sensitivity (1W @ 1m) | 87 dB |
| SPL Max | 101 dB |
| Coverage Angle (H x V) | 90º x 90º |
| Frequency Range | 120 Hz - 20 KHz |

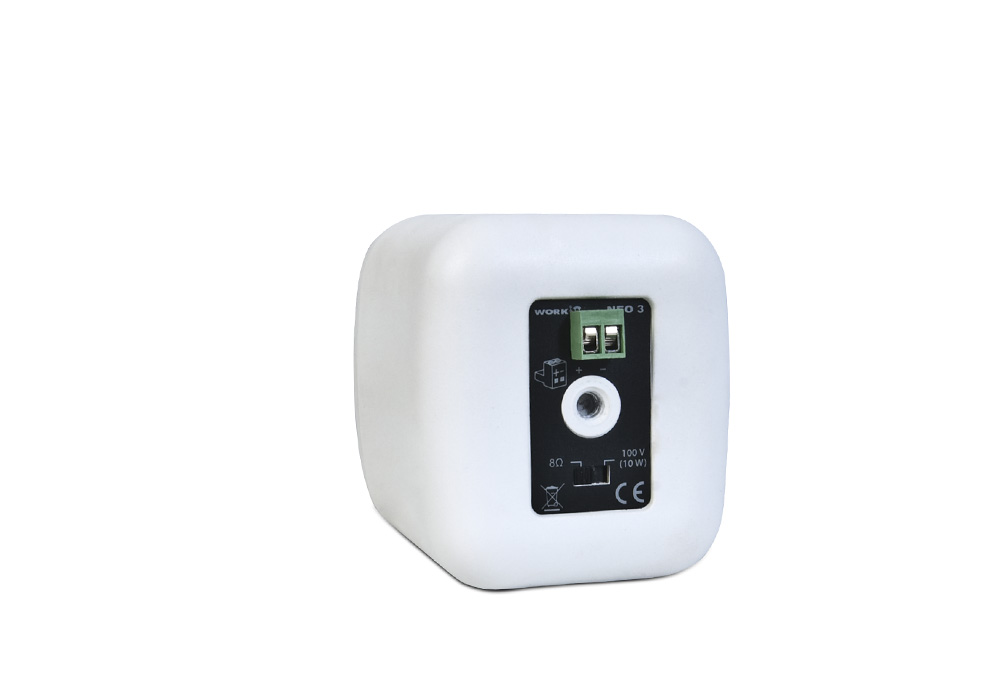

| Connections | Euroblock |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP54 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.10 | 0.09 | 0.10 | 0.50 |
| Box | 0.14 | 0.23 | 0.12 | 1.50 |
| Master Carton | 0.25 | 0.55 | 0.63 | 31.00 |
