Installation Loudspeakers
WND 6
#50WND006
#50WND007
Passive loudspeaker. 400 W prog @ 8 Ohm. 2 x 6.5'' Woofer + 1.35'' Driver.

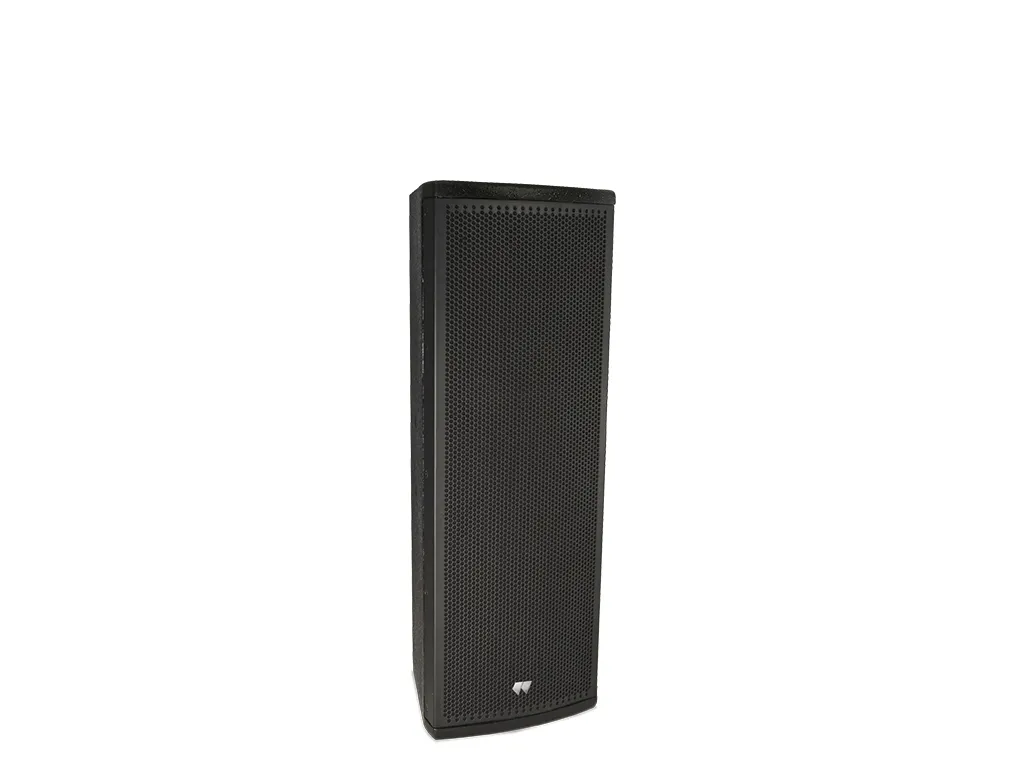

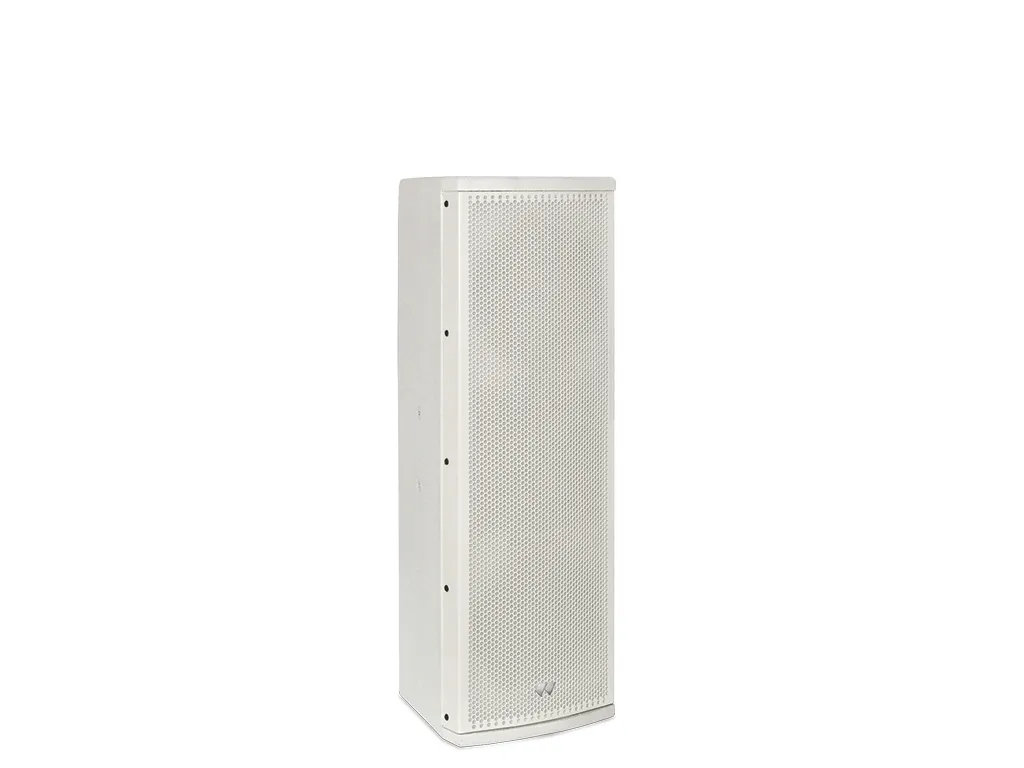

WND 6 is a 400 W @ 8 Ohm passive loudspeaker, consisting of two 6.5" loudspeakers and a 1.35" compression driver, and made of wood. It is available in black or white. U-bracket not included.
Main information
- Wood made.
- High resistance paint.
- 2 x 6.5 inches woofer.
- Rotating diffuser.
Product main measures (m)
0.22 x 0.22 x 0.61
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | 2 ways. Passive |
| Power | 200 W RMS |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 2 x Woofer 6.5" |
| HF Transducer | 1.35" Compression driver |
| Sensitivity (1W @ 1m) | 95 dB |
| SPL Max | 119 dB |
| Coverage Angle (H x V) | 120º x 60º |
| Frequency Range | 68 Hz - 18 KHz |
| Connections | 2 x XLN4 |
| Enclosure material | MDF wood |
| Grill | Iron |
| Colour | Black or white |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.22 | 0.22 | 0.61 | 13.30 |
| Box | 0.30 | 0.30 | 0.70 | 13.30 |
