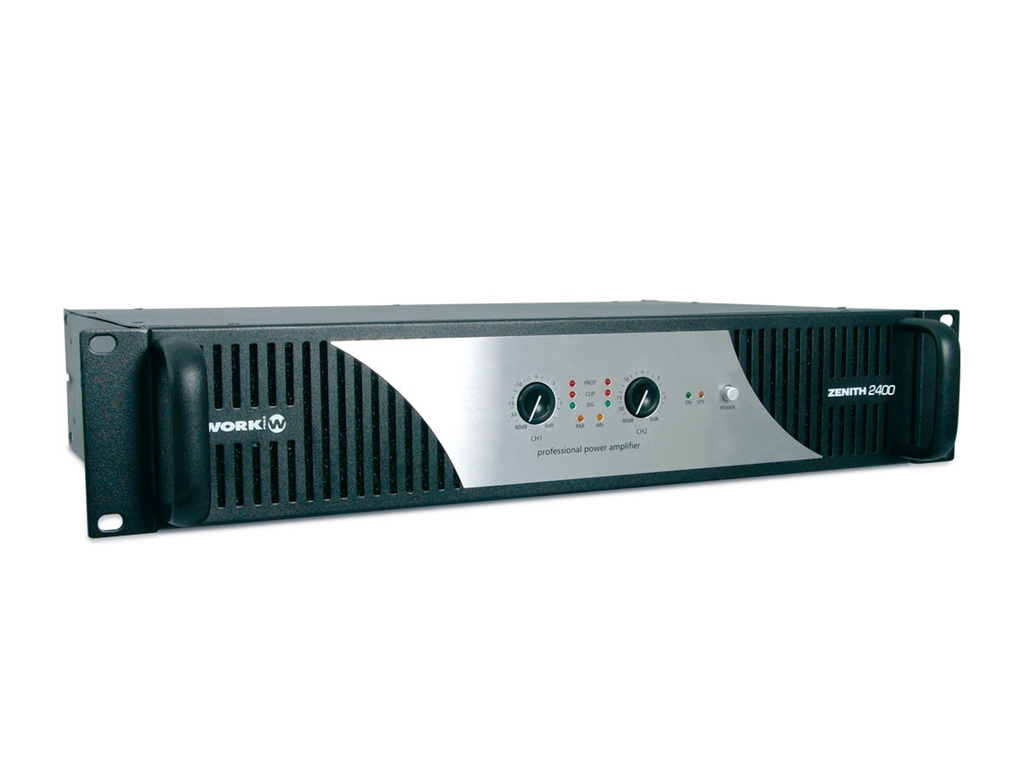

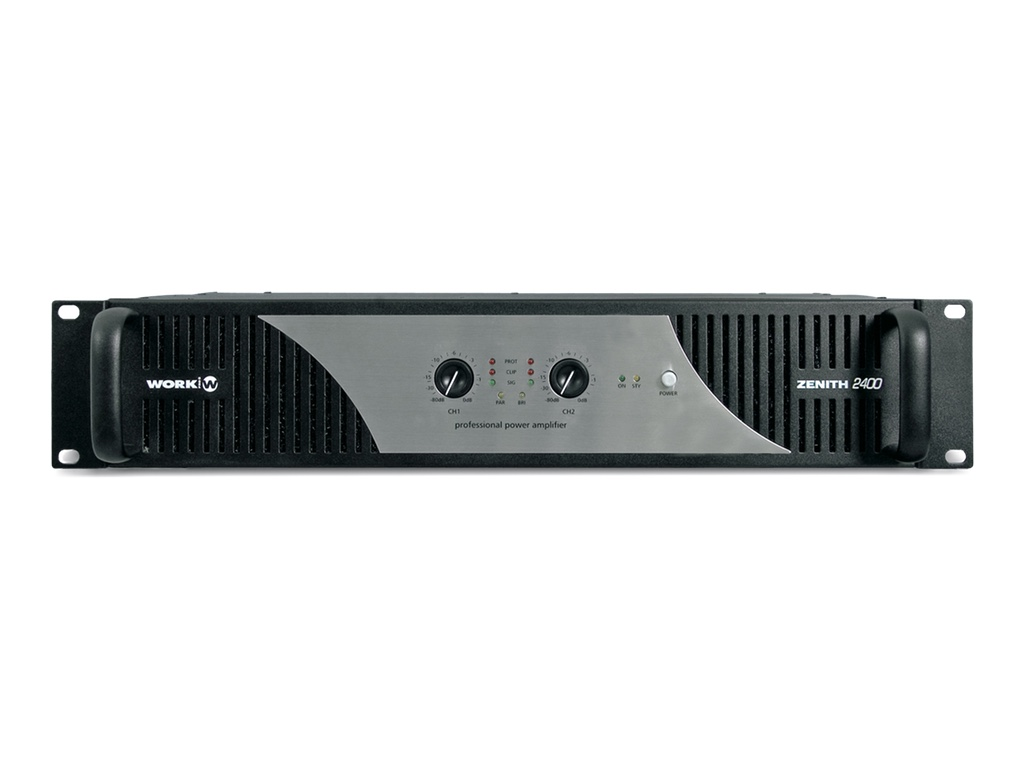

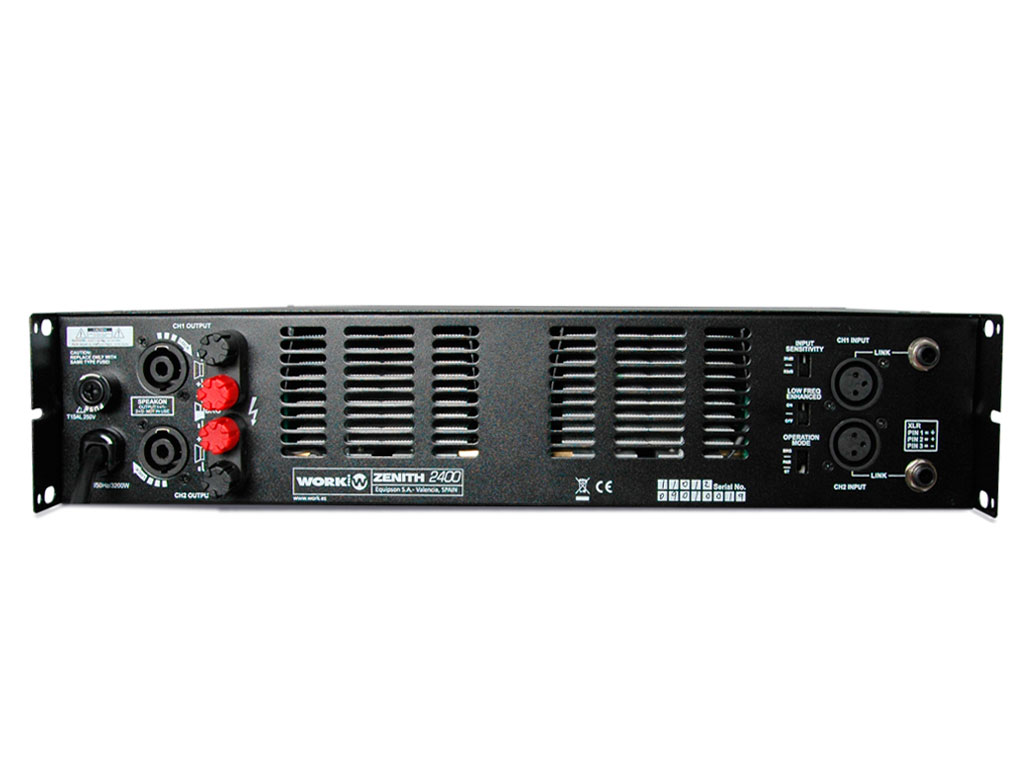

Zenith 2400 is a 2-channel 1000W @ 4 Ohm professional audio amplifier, with switching power supply, built in a 2-rack unit metal enclosure. It has balanced inputs in XLR3 format and 1/4" TRS jack and outputs with XLN4 and Binding Spot connectors. It has selectors for input sensitivity, operating mode and bass boost. It also has protection systems against short circuit, temperature, DC, VHF and constant high frequency signal The front panel has a power switch, independent volume controls for each channel and indicators for power, signal, clip, protection and operating mode.
- Switching power supply.
- Minimun output impedance 2 Ohm.
- Stereo, paralel and bridge mode.
- Front power and volume control.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Class 2H |
| W/Ch @ 8/4/2 Ohm | 600 W / 1000 W / 1250 W |
| W/Ch @ 8/4 Ohm Bridge | 2000 W / 2600 W |
| Frequency Range | 20 Hz - 20 Hz |
| THD+N | <0.05% |
| S/N Rate | >100 dB |
| Damping Factor | >200 |
| Dynamic Range | >80 dB |
| Gain | 26/32 dB |
| Input Impedance | 20 KOhm balanceada, 10 KOhm desbalanceada./ 20 KOhm balanced, 10 KOhm unbalanced. |
| Input Sensitivity | 13 dBu / 6.97 dBu |
| Connections | Power supply: 1 x male schucko included, Audio input: 2 x XLR3 female, 2 x 1/4" TRS Jack. Amp output: 2 x XLN4 female, 4 x Binding Post. |
| Protections | Overheat, VHF, short circuit, AC lower, DC protection, CLIP / Limit |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.36 | 0.48 | 0.09 | 9.90 |
| Box | 0.50 | 0.58 | 0.16 | 11.00 |
