ARION 5 (4 Cajas)
#99PAV017
#99PAV018
Self-powered Line Array system. Active 15'' Subwoofer + 6 satellites (2 x 5'' Woofer + 1.75'' Driver).

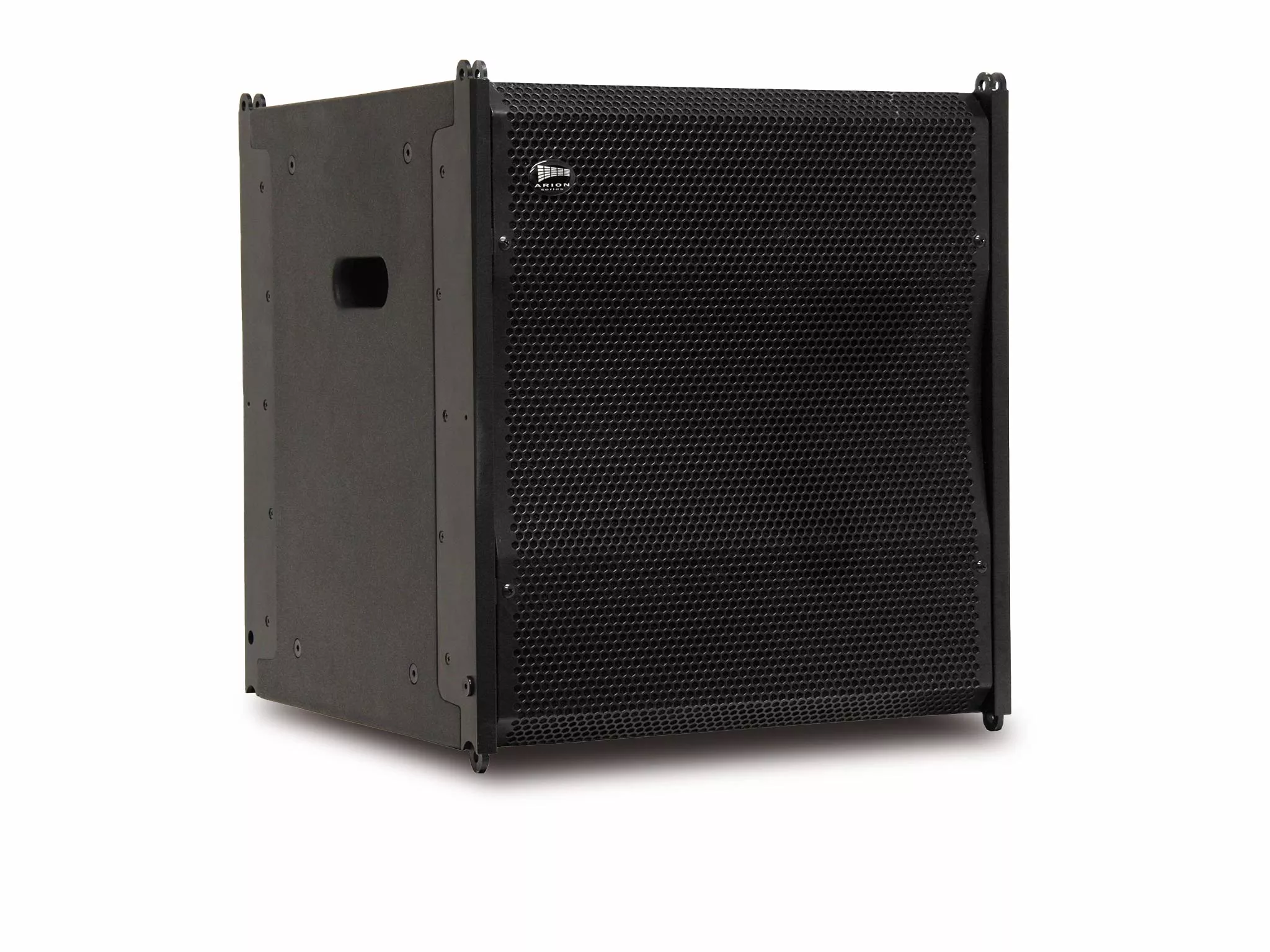

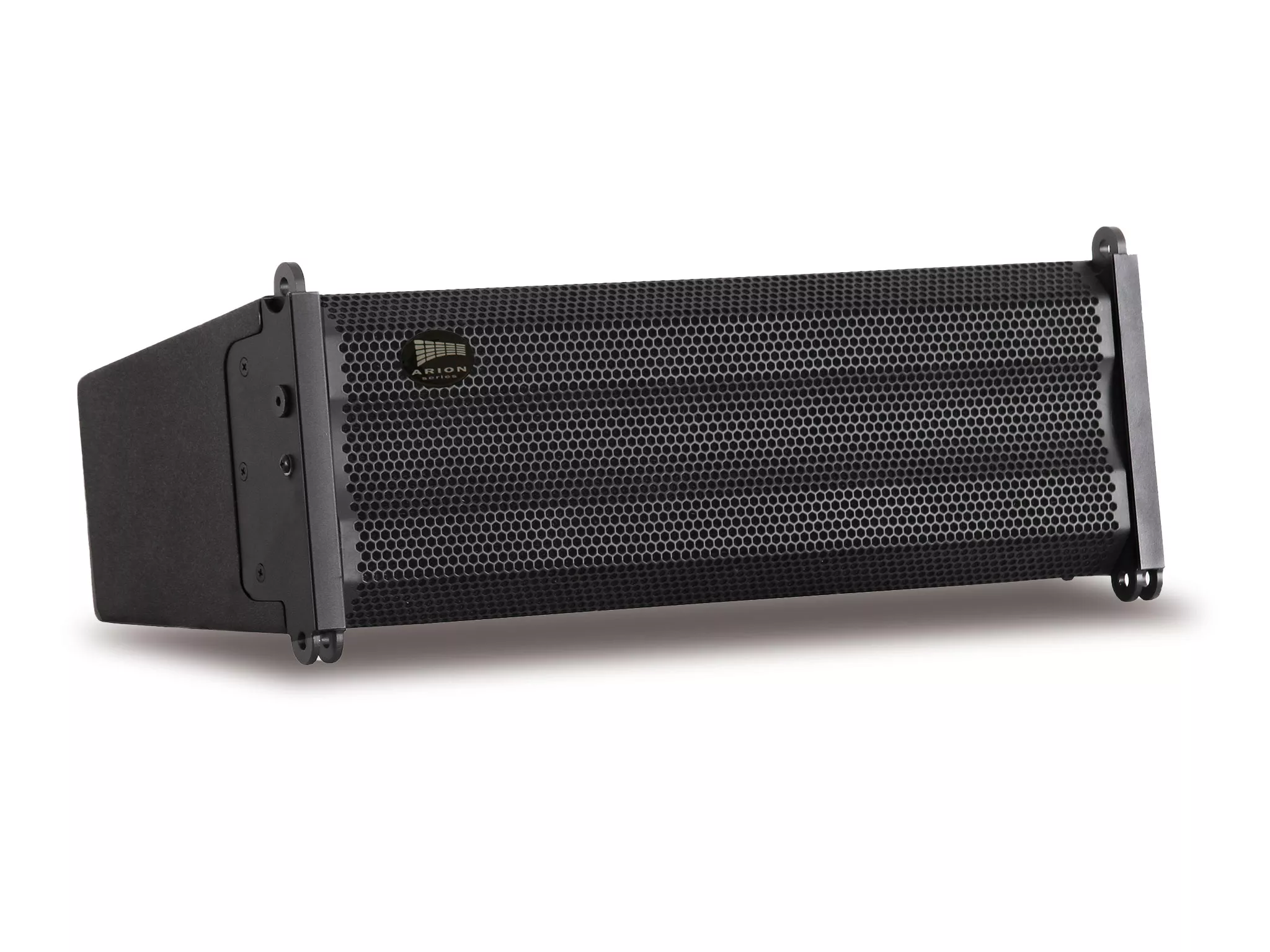

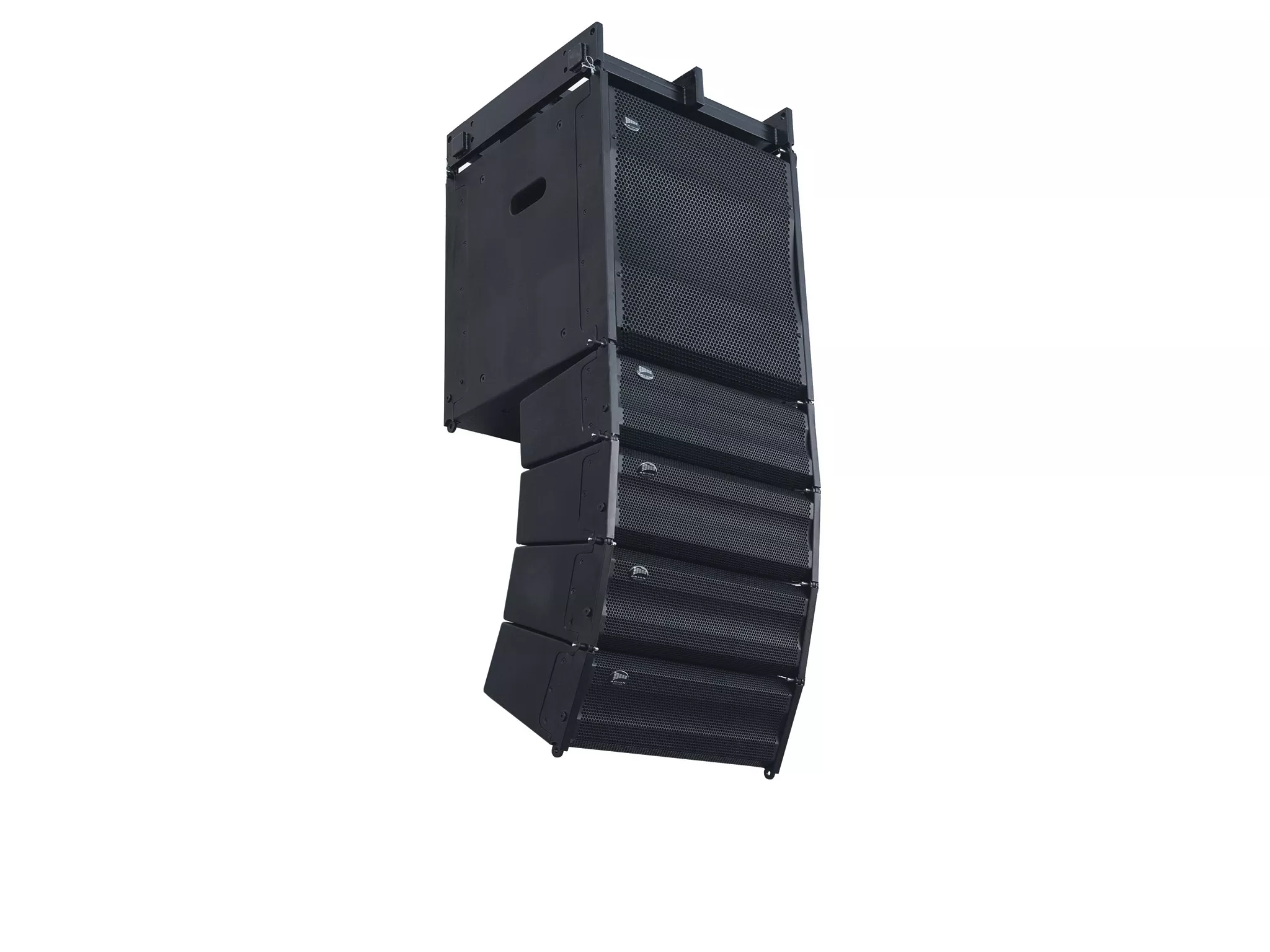

ARION 5 is an active three-way line array, composed of 4 SL 025 units and 1 SL 115 A unit. Each SL 025 consists of 2 5.25" loudspeakers and a 2.2" compression driver with polymer membrane attached to the VI-5 waveguide. The SL 115 SA subwoofer cabinet uses a 15" driver, with a 3.5" voice coil. It has digital signal processing, and the power is provided by a Class D amplifier of 1000W peak in bass, 650W peak in midrange and 150W peak in treble, which incorporate thermal and overload protections. Independent RMS and peak limiters are used on each path.
Main information
- Case-D amp.
- Birch plywood.

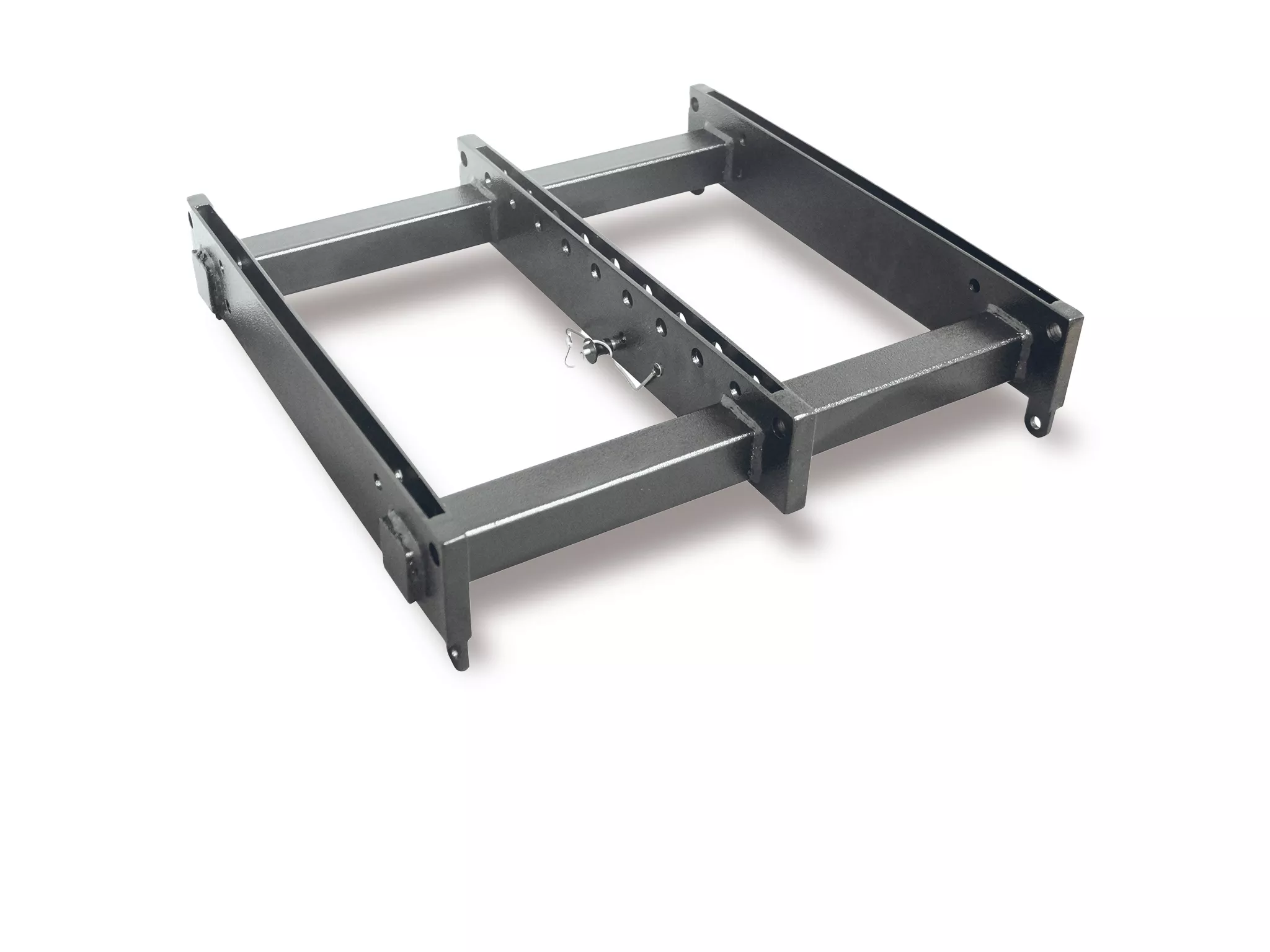

- Flying frame included.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| LF Transducer | Woofer 15", Voicecoil 3.5" |
| MF transducer | 2 x woofer 5", Voicecoil 1.46" |
| HF Transducer | Driver compression 2.2", exit 1.75" |
| LF amplifier | Clase-D 1000 W peak |
| MF amplifier | Clase-D 650 W peak |
| HF amplifier | Clase-D, 150 W peak |
| Frequency | 100 Hz - 18 kHz |
| Input Impedance | 10 KOhm |
| Input Sensitvity | +4 dBu |
| Max SPL | 127 dB |
| Horizontal coverage | 140º |
| Vertical coverage | 10º |
| Material | Birch plywood |
| Finished | Polyurethane paint |
| Power supply | 115Vac/230Vac, 50Hz/60Hz |
| Consumption | 2 A |
| Dimensions | Satellite: 165x490x251 mm, Subwoofer: 521x490x492 mm |
| Weight | Satellite: 9.2 Kg, Subwoofer: 33.5 Kg (total weight 74 Kg) |
| Includded accessories | Flying support, interconnecting cables |

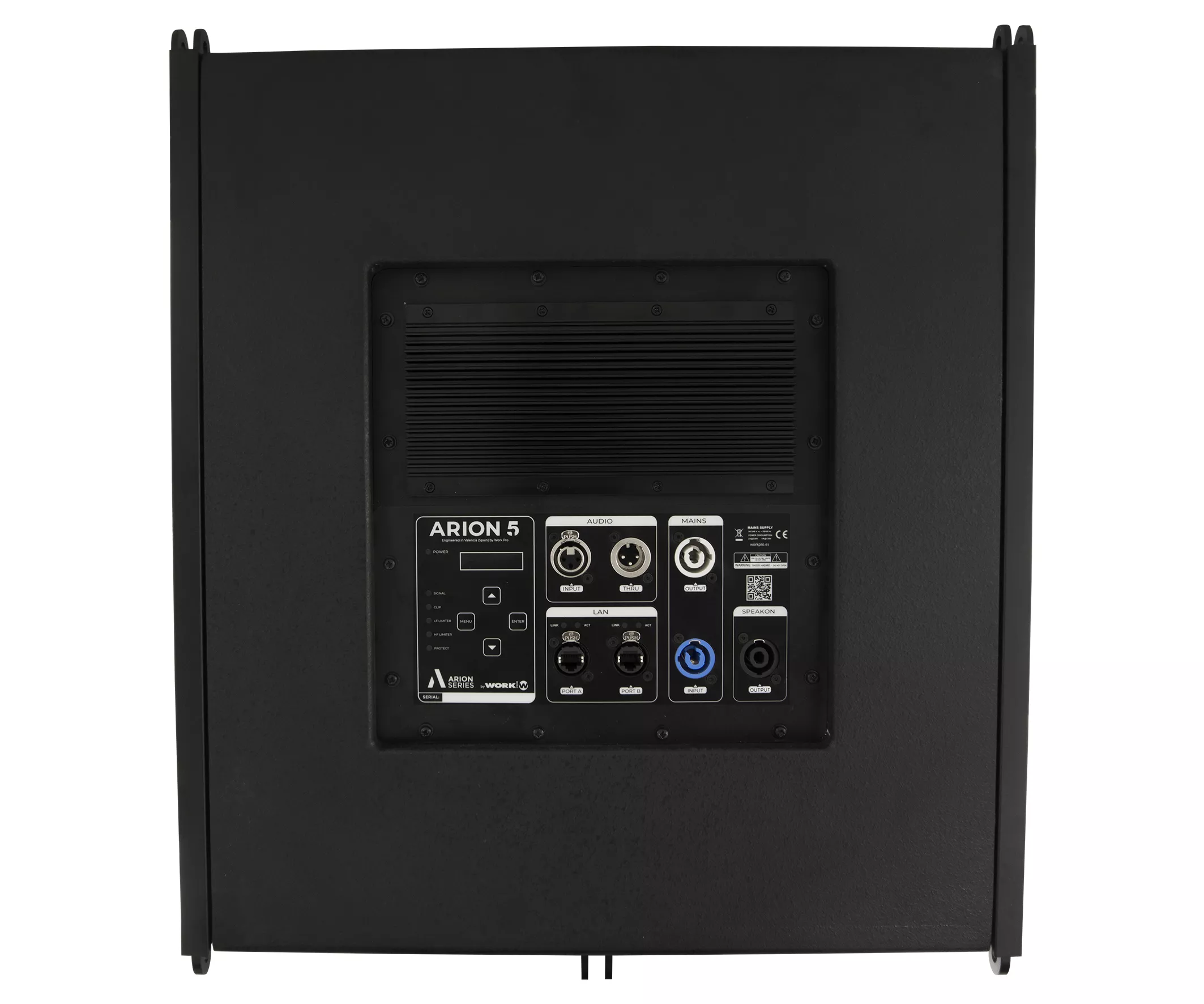

| Connections | Audio In: Female XLR & Stereo RCA, Audio Out: Male XLR, Power Input: IEC, Satellite Output: Speakon NL4 |
| Protections | RMS limiter and Peak |
