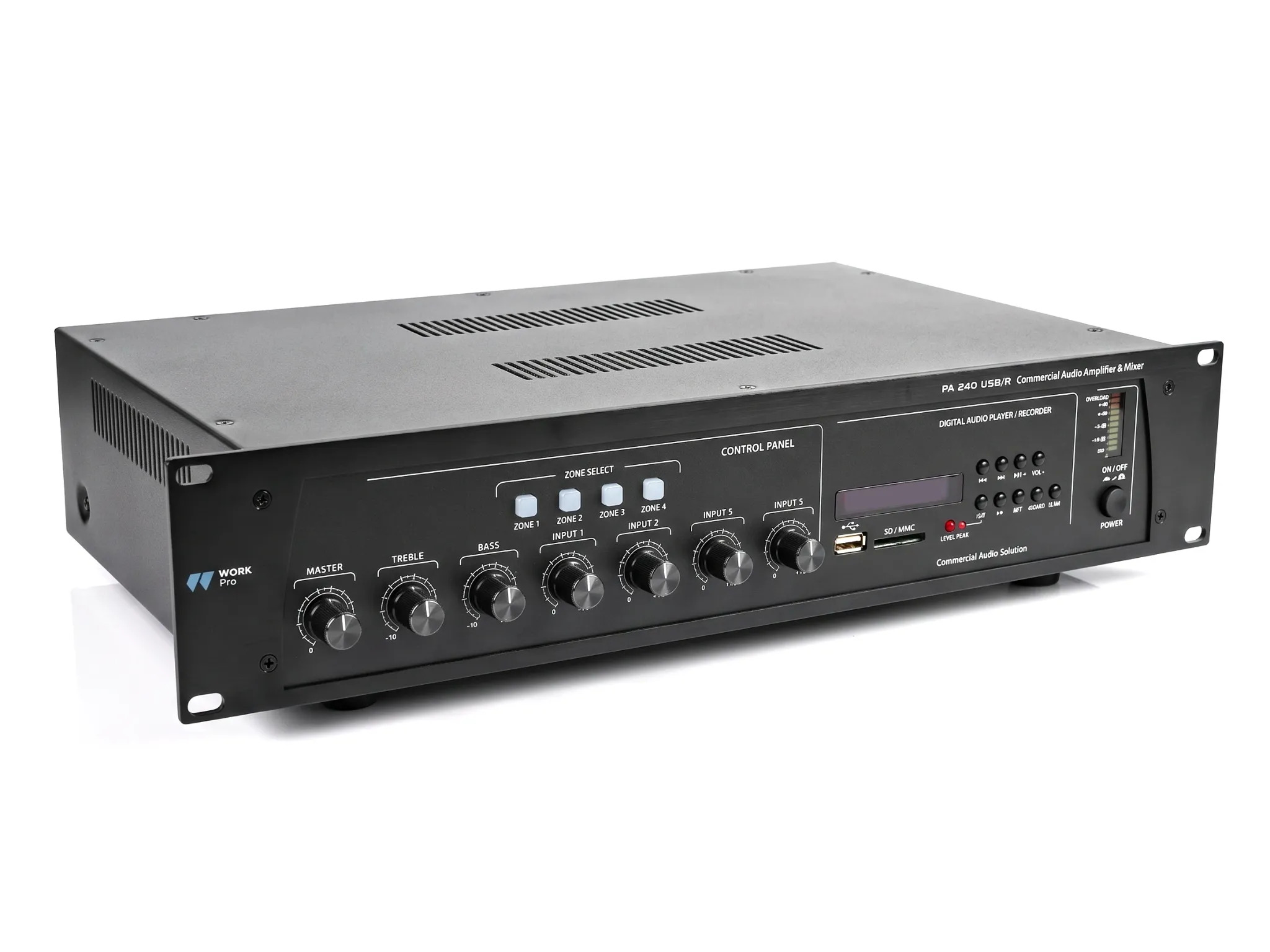

PA 240 USB / R is a 240 W installation amplifier that includes a USB / SD media player / recorder. It incorporates a 5-input mixer for audio control with independent volume control, Master level control and bass / treble tones, and it is possible to select 4 different audience zones. It incorporates a pre-out terminal to send the mixed signal to an external amplification system or for connecting external devices such as equalizers or processors. It has a 1 W monitor output that allows you to connect a speaker for monitoring purposes. In addition, for maximum safety, it includes a warning on / off switch and a TEL / Emer connection for emergency announcements.
- 2 19-inch rack units.
- USB / SD / MMC recorder / player.
- 4 selectable audience zones.
- Telephone / emergency connection.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Low impedance (4/8/16 Ohm), Line 25/70/100 V |
| Power | 240 W |
| Input Sensitvity | CD: 700 mV, Tuner: 500 mV, Tape: 220 mV, Aux in: 100 mV, Mic: 2.7 mV, Line: 125 mV, Tel: 100 mV |
| Input Impedance | CD: 80 KOhm, Tuner: 56 KOm, Tape: 20 KOhm, Aux in: 20 KOhm, Mic: 600 Ohm, Line: 47 KOhm, Tel: 20 KOhm |
| Connectors | 4 x XLR3 / Jack combi (Mic / Line), 1 pair RCA (CD, Tuner, Tape, Aux in), RCA (Pre out, Main in), Terminals (Amp out, Tel, Priority) |
| Controls | Independent volume for each input channel, Master volume, Tone control (treble / bass), Audience zone selector, Player recorder control. |
| Frequency Response | Mic: 50 Hz - 14 KHz, Line: 30 Hz - 14 KHz, Tel: 100 Hz - 3 KHz |
| THD+N | < 1% @ 1 KHz |
| Phantom Power | +24 V |
| Other functions | Selection of audience zones, recorder / player, 4 chime tones, telephone / emergency connection |
| Power supply | AC 115/230V, 50/60 Hz ±10% |
| Consumption | 560 W |
| Dimensions | 483 x 88 x 335 mm (2 HU 19" rack) |
| Weight | 13 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.34 | 0.48 | 0.09 | 13.00 |
| Box | 0.58 | 0.44 | 0.20 | 15.98 |
